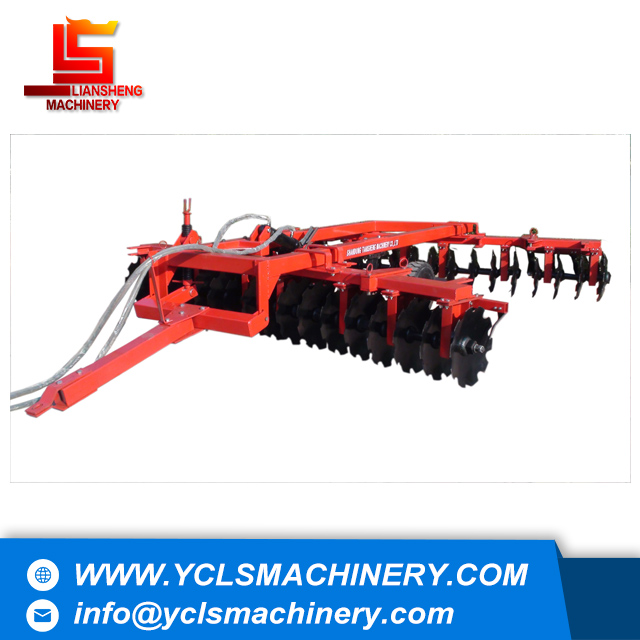

1BJ series trailed folding wing Medium disc harrow is mainly applicable to clean the crop residue before tillage, break the hardened and level the soil surface, crush and spread straw into the field, shatter soil after tillage, and level the land prepare the soil seedbed for planting. It can be used as tillage machine instead of plow on the cultivated land.
This folding wing disc harrow is trailed for 80-160hp four wheels tractor.
The harrow has high working efficiency.
Good ability for soil pulverization.
This folding-wing harrow can be folded horizontal.
Wide range of operation.
Easy to transport because has the durable rubber tire.
|
Model |
Unit |
1BJ-4.0 |
1BJ-4.4 |
1BJ-5.3 |
|
Working width |
mm |
4000 |
4400 |
5300 |
|
Working depth |
mm |
140 |
||
|
Q’ty of disc |
|
36 |
40 |
48 |
|
Total weight |
kg |
1600 |
1750 |
2400 |
|
Matched power |
hp |
80－100 |
90－130 |
130－160 |
|
|
|
|
||
|
The items selectable |
|
(M22*1.5/M20*1.5/M18*1.5) oil connection (M22*1.5/M20*1.5/M18*1.5) |
||
