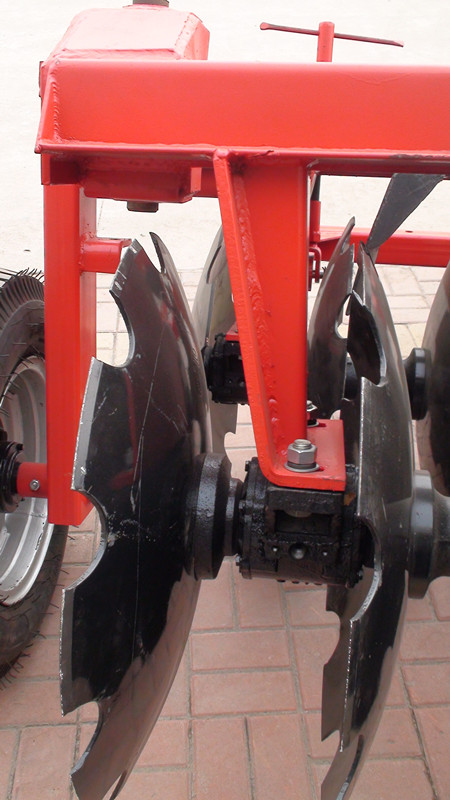

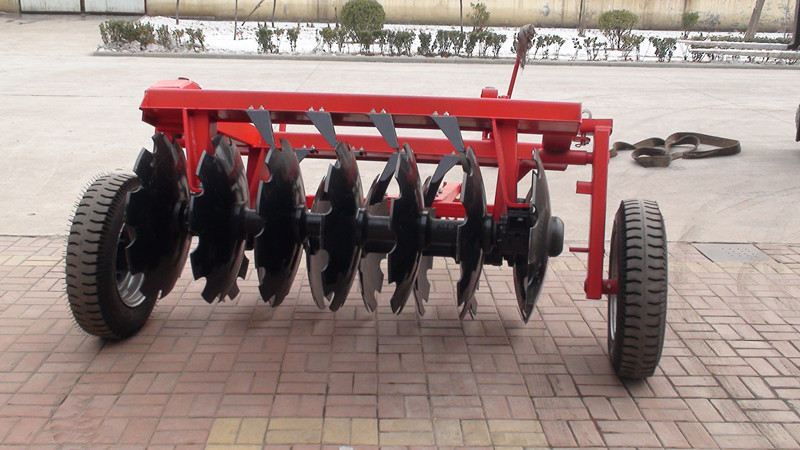

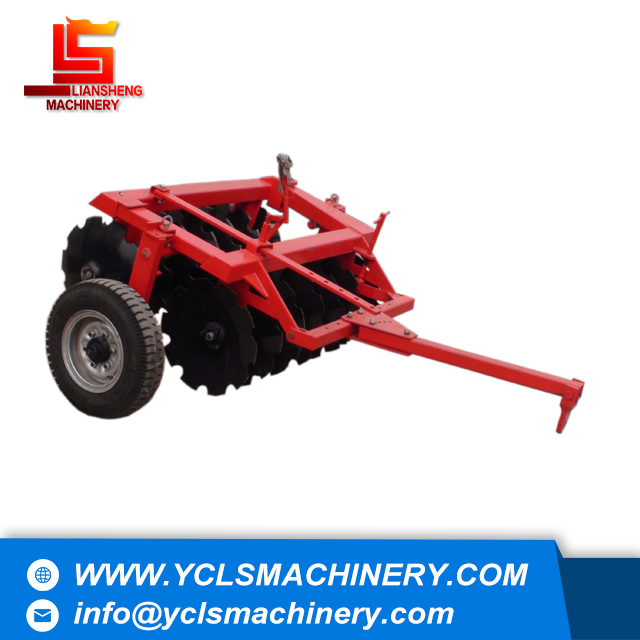

TSM heavy duty trailed disc harrow trailed with tractor. You also can adjust the deflection angle by yourself.
It is suitable for the operations such as soil crushing after plowing, presowing plowing, chessom, clay fertilizer blending, stubbing in the light soil, etc. The disc harrow has the advantages of reasonable structure, firmness and durability, convenient use, easy maintenance, great capacity of soil piercing and crushing, leveled field surface after plowing, etc.
|
Model |
Unit |
TSM-12 |
TSM-14 |
TSM-16 |
TSM-18 |
TMS-20 |
|
Working width |
mm |
1500 |
1750 |
2000 |
2300 |
2570 |
|
Working depth |
mm |
200 |
200 |
200 |
200 |
200 |
|
No. of disc |
|
12 |
14 |
16 |
18 |
20 |
|
Type of disc |
|
Notched |
Notched |
Notched |
Notched |
Notched |
|
Disc diameter |
mm |
660 |
660 |
660 |
660 |
660 |
|
Total weight |
KG |
800 |
900 |
1000 |
1150 |
1300 |
|
Power required |
hp |
75-80 |
80-90 |
90-100 |
100-120 |
120-140 |
