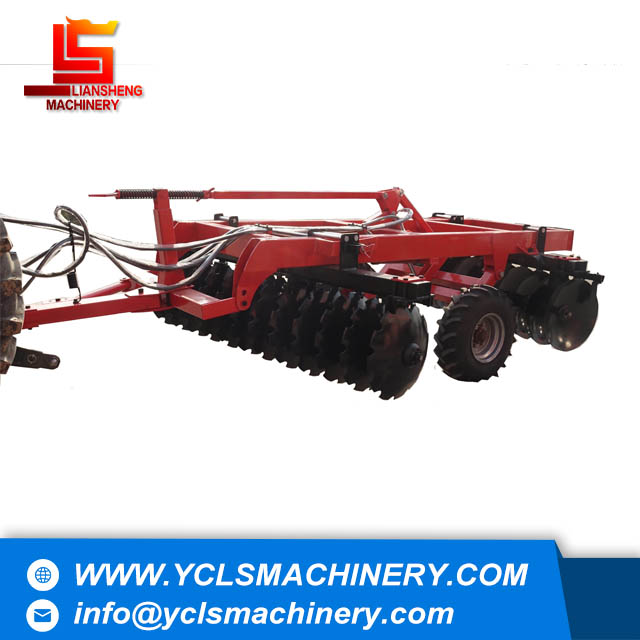

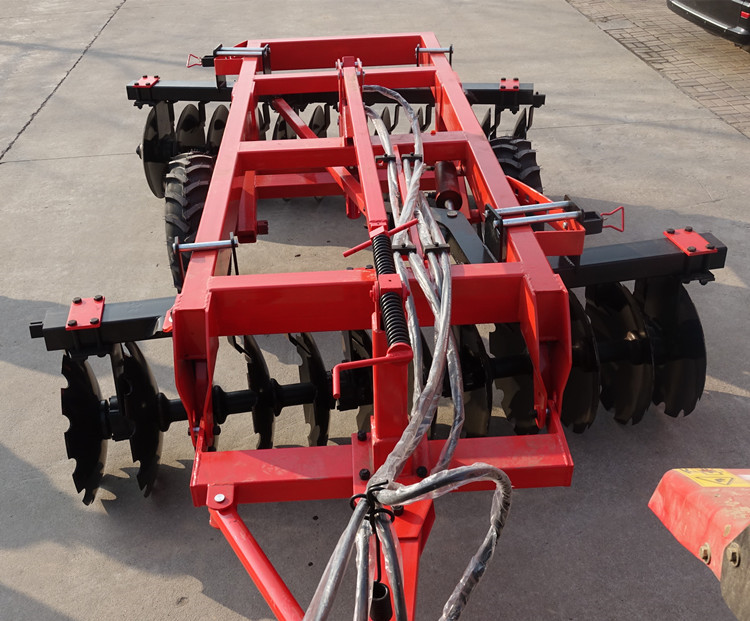

LSBZ heavy duty disc harrow is well suitable for heavy clay soil, waste land and weedy field as well, mainly suitable for stubble cleaning before farming, it can break the hardened soil and return the chopped straw to the soil, and also can crash the soil after tillage and level the land. The heavy-duty disc harrow can cultivate the soil instead of plough.
This hydraulic offset heavy disc harrow is trailed for 90-180hp tractor. Own hydraulic system to lift and down the transport wheel freely. High quality of difunctional oil cylinder. Widely working width of this heavy disc harrow.
Model
Unit
LSBZ-2.0
LSBZ-2.2
LSBZ-2.5
Working width
mm
2000
2200
2500
Working depth
mm
180-200
Q’ty of disc
20
24
28
Total weight
kg
1980
2100
2300
Matched power
hp
90-120
120-150
160
Linkage
Trailed;hydraulic output 1 type(difunctional oil cylinder),oil connection in 1/2” thread
