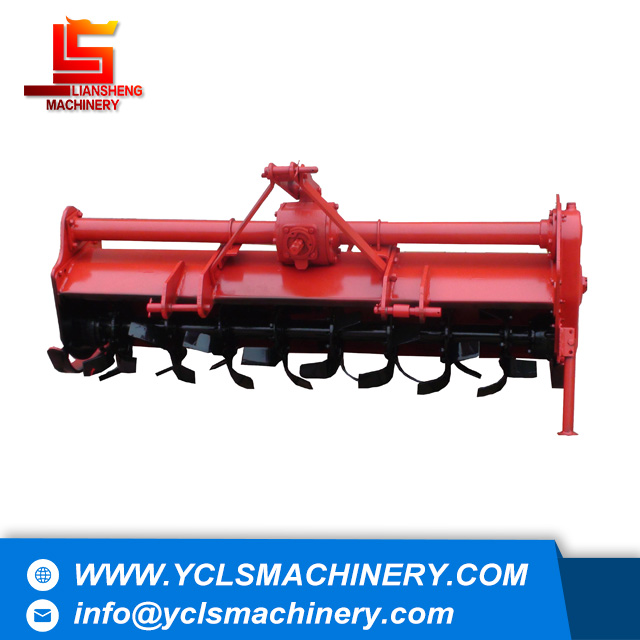

SGTN series of rotary tiller is adopted middle gear transmission system, mounted with the tractor though the three point suspension. Tractor’s wheel tracks are completely covered after tillage as the working width is much wider. The quality is reliable and the performance is well. This cultivator can be used on dry and paddy field. It can reduce the time, laboring, and cost, etc.
Covers the tractor wheel track perfectly.
Saves labor and reduces the cost.
Mounted rotary tiller for 18-100hp tractor.
Tiller blade is 65Mn steel. HRC: 43-48.
|
Model |
unit |
SGTN- |
|||||||||
|
|
|
120D |
125D |
140D |
150D |
160D |
180D |
200D |
220D |
250D |
300D |
|
Working width |
mm |
1000 |
1250 |
1400 |
1500 |
1600 |
1800 |
2000 |
2200 |
2500 |
3000 |
|
Working depth |
mm |
120-180 |
|||||||||
|
Rotation speed of input shaft |
r/min |
540－720 |
|||||||||
|
PTO shaft spline |
|
6 spline |
|||||||||
|
No.of blades |
|
24 |
24 |
24 |
24 |
24 |
32 |
32 |
40 |
40 |
56 |
|
Type of blade |
|
L-860 |
|||||||||
|
Total weight |
kg |
200 |
210 |
220 |
230 |
252 |
380 |
410 |
435 |
480 |
520 |
|
Matched power |
hp |
12 |
20 |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
|
Linkage |
|
Three-point suspension I type |
Three-point suspension II type |
||||||||
|
The items selectable |
|
PTO transmission shaft in 8 spline |
|||||||||
