1LYDP series of hydraulic turing disc plough
❤ Add to collection

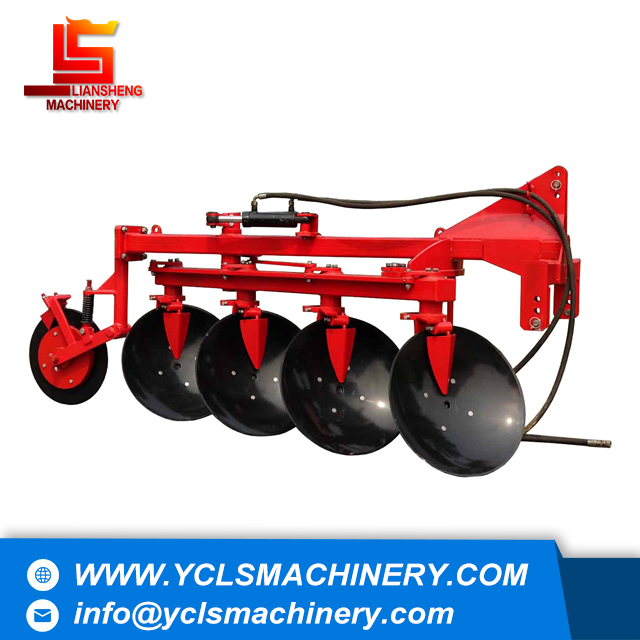

1LYDP series of hydraulic turing disc plough

0.00
¥0.00
¥0.00
¥0.00
Weight:0.00KG
Description

The disc plow controls the steering through the hydraulic cylinder to achieve the same direction of turning and prevent idling at the ground.

It is suitable for the ploughing operation of the mature land or wasteland in the dryland area, especially suitable for the returning operation of ploughing high-yield green fertilizer field and rice-soil.

 The eccentric angle of the tail wheel piece is adjustable, and the reversing direction is synchronous with the plough piece, which effectively ensures the smooth cultivation of the whole machine.

Model

Unit

1LYDP-325

1LYDP-425

1LYDP-525

1LYDP-625

Working width

mm

750

1000

1250

1500

Working depth

mm

150-300

150-300

150-300

150-300

No.of discs

3

4

5

6

Diameter of disc

mm

660/710*6

660/710*6

660/710*6

660/710*6

Matched power

hp

50-80

80-100

100-120

120-150

Overall weight

kg

620

700

830

950
